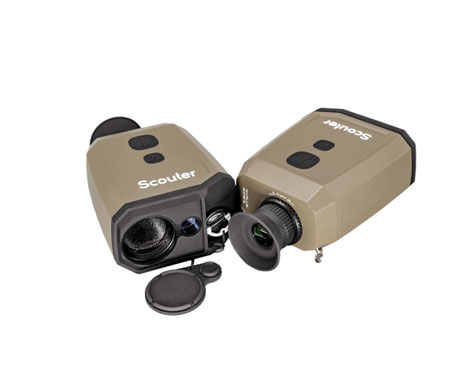

The main functions of Spotter series Pocket Laser Rangefinder include: ranging, ranging the distance between two targets, angle measurement, real-time display of measurement data in the eyepiece, power display, data transmission and other functions (Support extended GPS/Bluetooth/Wi-Fi module). It is mainly used for single-hand holding and equipped with tripod for long distance target. Besides, It is small size, lightweight and fitting easily into pocket.
| Scouter Laser Rangefinder | |||
| Product type | Scouter Ⅹ | Scouter Ⅵ | Scouter Ⅲ |
| Magnification | 7× | ||
| Field of view | 6°/106mil | ||
| Exit-pupil distance | 20mm | ||
| Diopter | -5～+5D | ||
| Laser type | 1535nm | ||
| Range | 30～10000m | 30～6000m | 30～3500m |
| Accuracy | ±1m | ||
| Angle range | Azimuth：0～360°；Inclination：±90° | ||
| Divergence | 0.4mrad | 0.6mrad | |
| Detection | ≥98％ | ||
| Ranging frequency | 1Hz | ||
| Power supply | DC 6V | ||
| Connector | Uart(TTL_3.3V) | ||
| Number of repeated measurements | 5000 times | ||
| (battery powered) | CR123A x 2 | ||
| Battery type | 141×93×53mm | ||
| Dimensions (L×W×H) | 460g | ||
| Weight(incl. batteries) | —40~+55℃ | ||
| Op temperature | —50~+65℃ | ||
| Sto temperature | IP67 | ||
