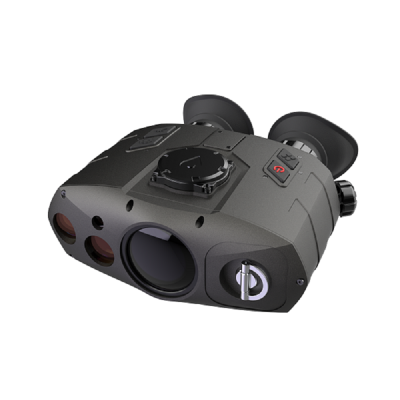

Tom-HDB Three Optical Channels HD Binoculars has two HD observing channels. The color day channel has a resolution of 6,200,000 pixels, and the thermal imaging channel has a resolution of 800,000 pixels. With the built-in positioning module, digital magnetic compass, and laser rangefinder, it can quickly and accurately locate itself and the target. And the target information can be acquired and uploaded. Tom-HDB has small size and low power consumption and is adaptive to various complex climates and environments.
Positioning Module : BD+GPS dual-module positioning
Laser Rangefinder : Measure precisely
Color Day Channel : High-resolution full color imaging Provides ultra-long sight distance
WiFi Module : WiFi Transmission
Digital Magnetic Compass : High-precision real-time Analysis
Thermal Imaging Channel : Get clear thermal images
| Item | Thermal Imaging Channel | Color Day Channel | |
| Detector | 1024×768，12μm | 2880×2160，2.0μm | |
| Spectral Band | 8~14μm | 0.4~0.63μm | |
| FOV | 15.5°×11.6° | 11.0°×8.2° | |
| Laser Rangefinder | Eye Safe:1535nm | ||
| Max Measuring Range:≥3km | |||
| Positioning Module | Measuring Accuracy:2m | ||
| Positioning Mode:BD+GPS | |||
| Horizontal Positioning Accuracy (CEP):5m | |||
| Elevation Positioning Accuracy (PE):10m | |||
| Digital Magnetic Compass | Azimuth Measurement Range:0°~360° | ||
| Azimuth Measurement Accuracy:1°(RMS) | |||
| Pitch Angle Measurement Range:-90°~+90° | |||
| Pitch Angle Measurement Accuracy:1°(RMS) | |||
| Inclination Angle Measurement Range:-180°~+180° | |||
| Inclination Angle Measurement Accuracy:1°(RMS) | |||
| Display | 1440×1080 OLED | ||
| Storage | 10000 JPG&4h AVI | ||
| Ocular Lens | -4~+4 (Diopter) | ||
| Weight | ≤1.1kg (With battery) | ||
| Battery life | ≥7h | ||
| Dimension | 143×164×73mm | ||
| Interface | External Power Supply/USB/PAL/RS232/WIFI | ||
| Operating Temperature | -40°C~+55°C | ||
| Storage Temperature | -55°C~+70°C | ||
| Encapsulation | IP67 | ||
| Operating Distance | Thermal Imaging Channel | Color Day Channel | |
| Human Target 1.7m×0.5m | Identification | 500m | 500m |
| Recognition | 1000m | 1000m | |
| Detection | 2000m | 3000m | |
| Vehicle Target | Identification | 700m | 800m |
| Recognition | 1400m | 2000m | |
| Detection | 3000m | 4000m | |
