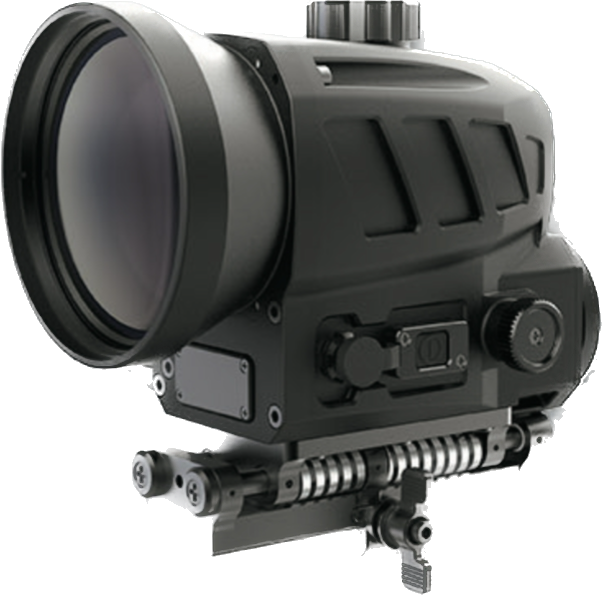

Tyke-CH6 Heavy-type Clip-on Thermal Sight is an economical thermal sight, equipped with a 640×512 thermal detector and matched with 75mm lenses. It can be used alone or in combination with a daylight scope, to provide excellent thermal images.
Tyke-CH6 features a compact and simple design, being water & dustproof, and excellent in shock resistance. It is adaptable to climate and landform changes and able to provide round-the-clock service under all-terrain and all-weather working conditions, delivering reliable and superior performance.
| Item | Tyke-CH6 Heavy-type Clip-on Thermal Sight | |
| Name | Tyke-CH6 | |
| Detector | Resolution | 640×512 |
| Pixel Pitch | 12μm | |
| Spectral Band | 8~14μm | |
| NETD | ≤40mk | |
| Frame rate | 25Hz | |
| Lens | FOV | 5.8°×4.6° |
| Focus | 75mm | |
| Display | Screen | 0.5’OLED 800×600 |
| Eyepiece Magnification | 3.2× | |
| System Magnification | 1× | |
| Imaging distance | 30m~+∞ | |
| Focusing Method | Knob focusing | |
| Main Functions | Zero Reset | Zero reset, precise shot |
| Reticle Ranging | Stadiametric rangefinding based on people and vehicle | |
| Scene Set | Adaptive and manual settings are available depending on the application scenario | |
| Digital Zoom | 1×、2×、3×、4× | |
| Image Modes | Black hot、White hot、Red hot、Red face、Rainbow | |
| Physical Parameters | Dimension | 144x95x136mm |
| Power Supply | 2×18650 | |
| Total weight | ≤1.1kg | |
| Battery Life | ≥12h | |
| Interface | External Power Supply/Analog Video /RS232/WIFI | |
| Environmental Adaptability | Operating Temperature | -40°C~+55°C |
| Encapsulation | IP67 | |
| Reliability | Shock 1800g/2Hz 0.2ms | |
| Altitude | ≥5000m | |
| Environmental adaptability | All day and all weather | |
