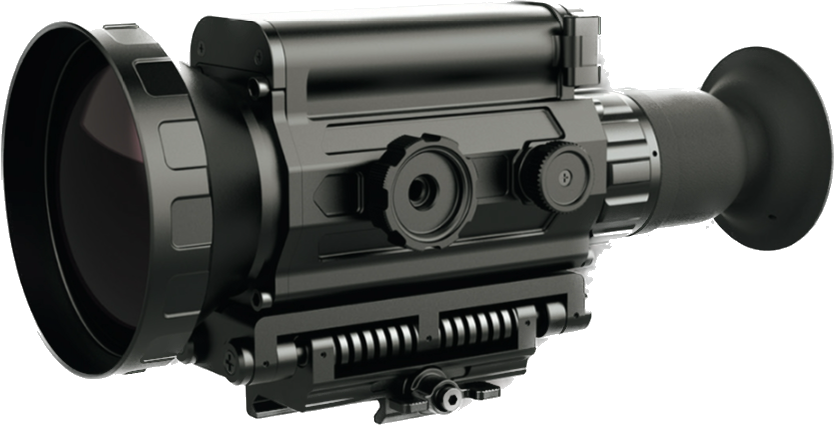

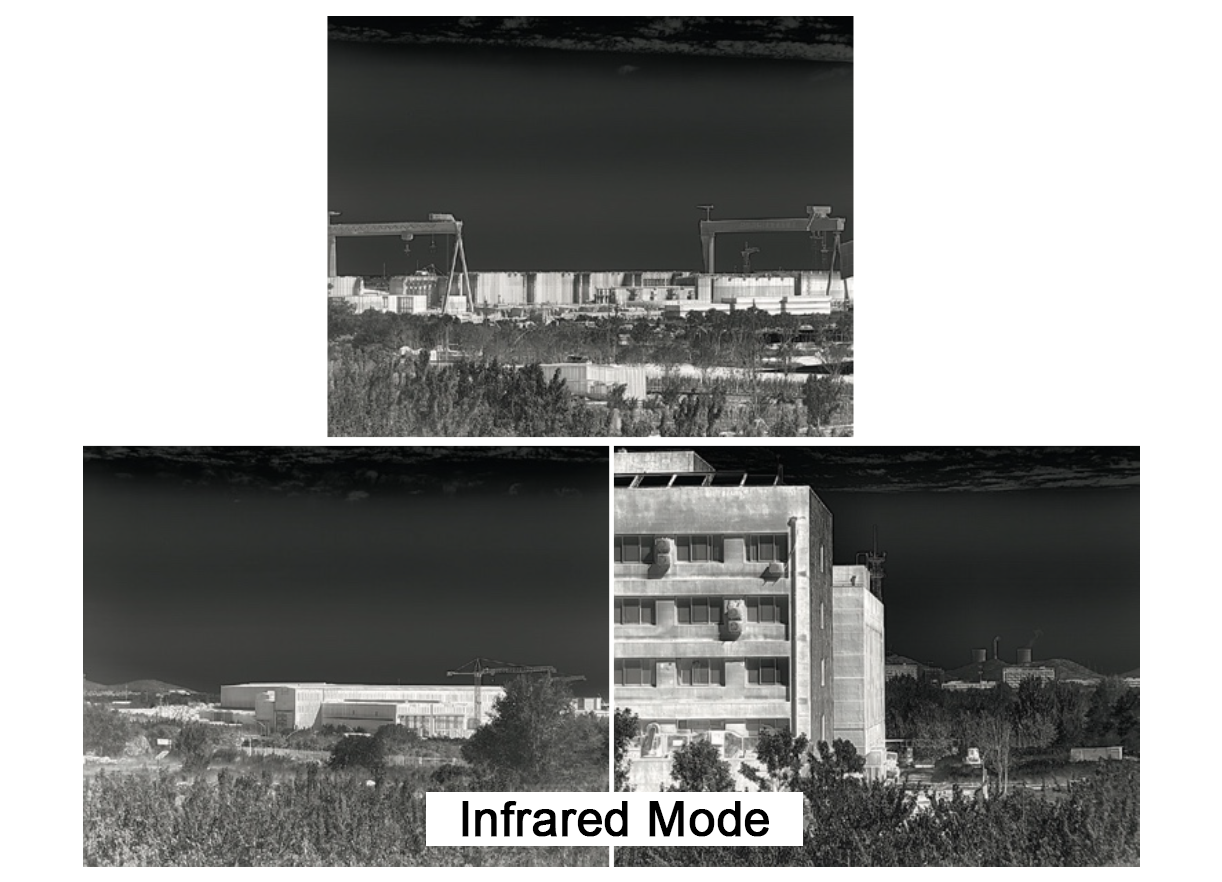

Tyke-H6 Thermal Sight is mainly used to be equipped on 12.7 mm rifles, machine guns, and sniper rifles with Picatinny rail. It can be used for aiming at single or clustered living targets within 1,800 m or light vehicle targets within 2,100 m. It adopts thermal imaging technology to discover and identify targets. It can also realize the accurate aiming of targets through its built-in ballistic calculation and device. Tyke-H6 incorporates a high-definition OLED screen, easy to learn and operate.
| Description | Technical Specifications | |
| Imaging components | Resolution | 640 X 512 |
| Pixel size | 12μm | |
| Spectral range | 8~14μm | |
| Frame rate | 25Hz | |
| NETD | ≤40mk | |
| Objective lens components | Lens | 90mm |
| FOV | 4.9°X 3.9° | |
| Imaging distance | 30m~+∞ | |
| Focusing | Side focus knob | |
| Display components | OLED | 800×600(0.5 寸) |
| Diopter adjustment | -5~+5SD | |
| Eye relief | 43mm | |
| Digital zoom | 1-4x | |
| Optical zoom | 5.5x | |
| Physical property | Battery type | 18650 lithium battery(Two) |
| Battery life | ≥12h | |
| Weight | ≤1100g | |
| Switch-on time | ≤10s | |
| Dimension | 220×95×106mm | |
| Device performance | Protection grade | IP67 |
| Recognition distance | ≥1800m (1.7 X 0.5 human target) | |
| ≥2100m(2.3X 2.3vehicle target) | ||
| Observation accuracy | ≤0.5mil (Including repeated mounting) | |
| Reticle adjustment sign | ≥±15mil | |
| Reticle adjustment accuracy | 0.12mil | |
| Impact | 1000G | |
| Application environment | Operatingtemperature | 40°C~55°C |
| Storage temperature | -43°C~70°C | |
| Humidity | 95%±3% | |
| Altitude | ≥5000m | |
| Operational adaptability | All-weather | |
| Firingreliability | 12,500 rounds of live fire(Half- life) | |
