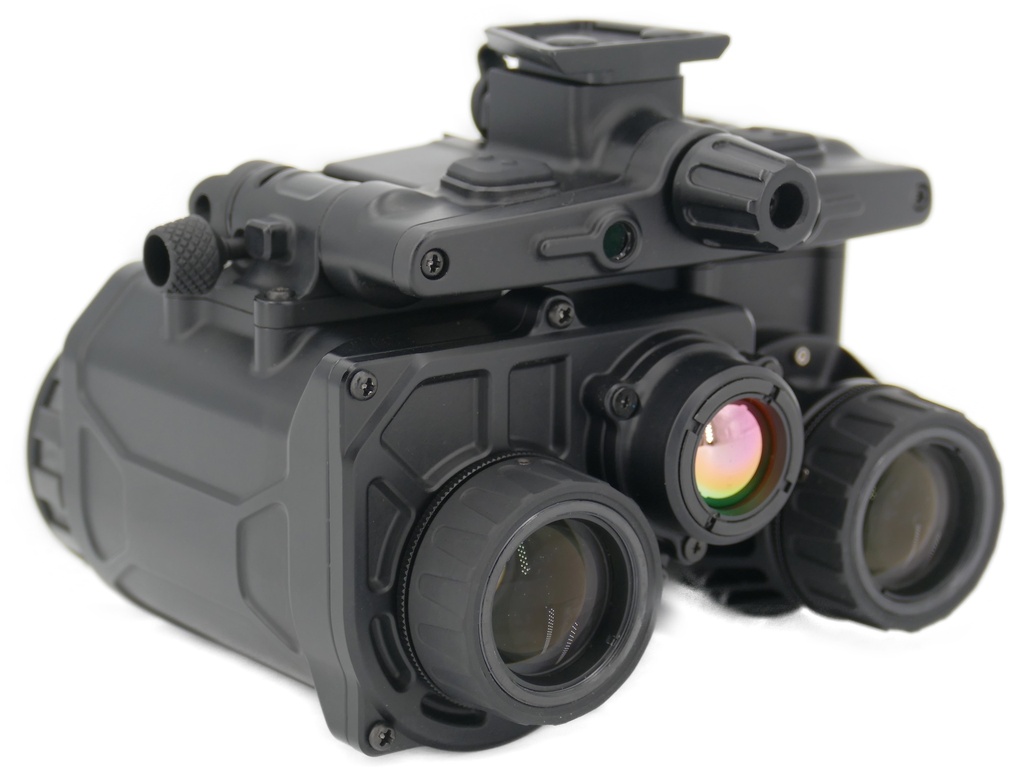

Jerry FB is equipped with a new generation of night vision fusion technology, by which the binocular three-dimensional imaging and thermal imaging technology make it possible for users to recognize targets and distinguish threats quickly. Matched with external devices, it can realize the functions of rapid target acquisition (RTA) and augmented reality (AR) so as to increase the ability of situational awareness and self-protection.

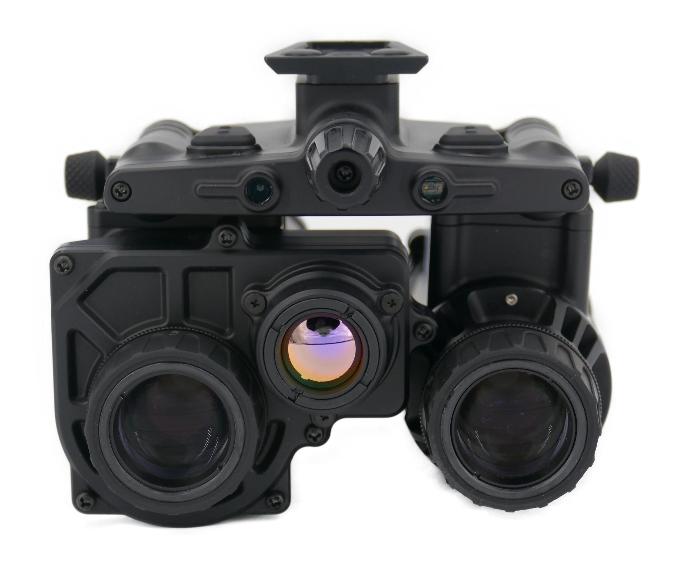

Ifrared Fill-in Light : Adaptable to totally dark scenarios
Ocular Lens : Extra large exit pupil diameter Clear and stable field of view
Infrared : Capture thermal images
Binocular I2 : Capture I2 enhanced images
· Optical Specifications
Magnification: 1×
Infrared Focal Length: 16mm Focal Length Range: 25cm ~+∞ I2 FOV: 40°
Infrared FOV: 25.9°×20.9°
Eye Relief: 25mm
Diopter: +2/-4
· Performance Specifications
I2 Camera Tube: Optional between the 2nd and 3rd generation
Infrared Thermal Imaging: 640×512-12μm

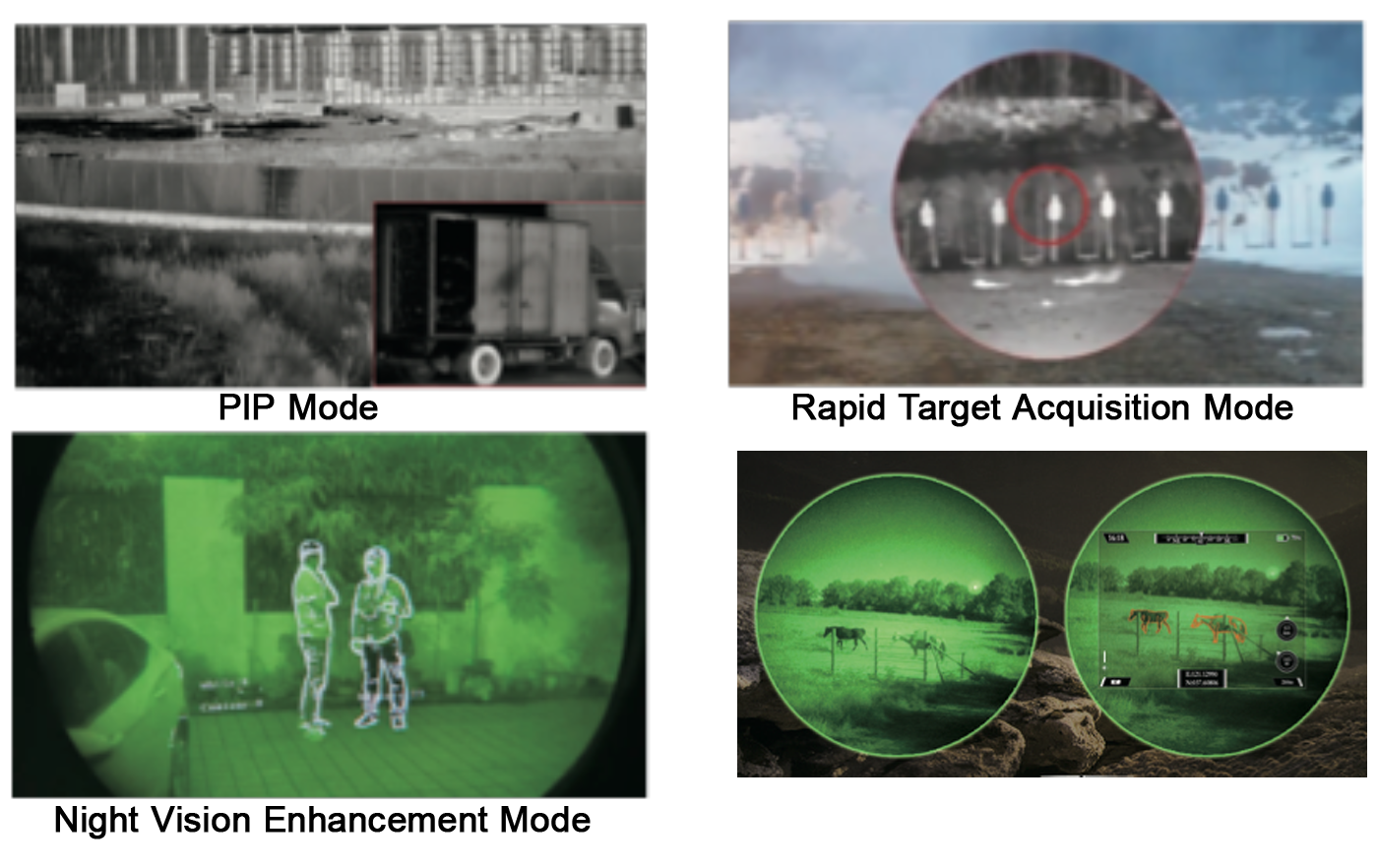

Display Mode: White-hot, highlight, outline
Rapid Target Acquisition: Support
Induction Information Display: Support Up-turning Shutdown: Support
IPD adjust:Support
Positioning navigation:Support

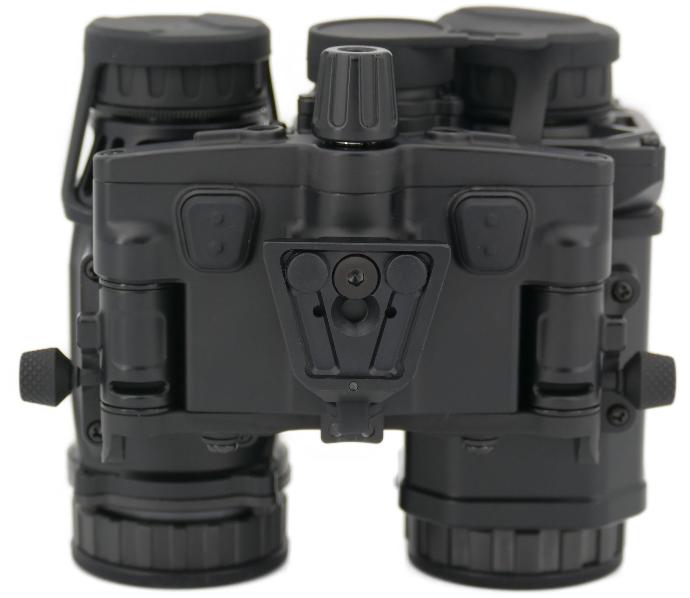

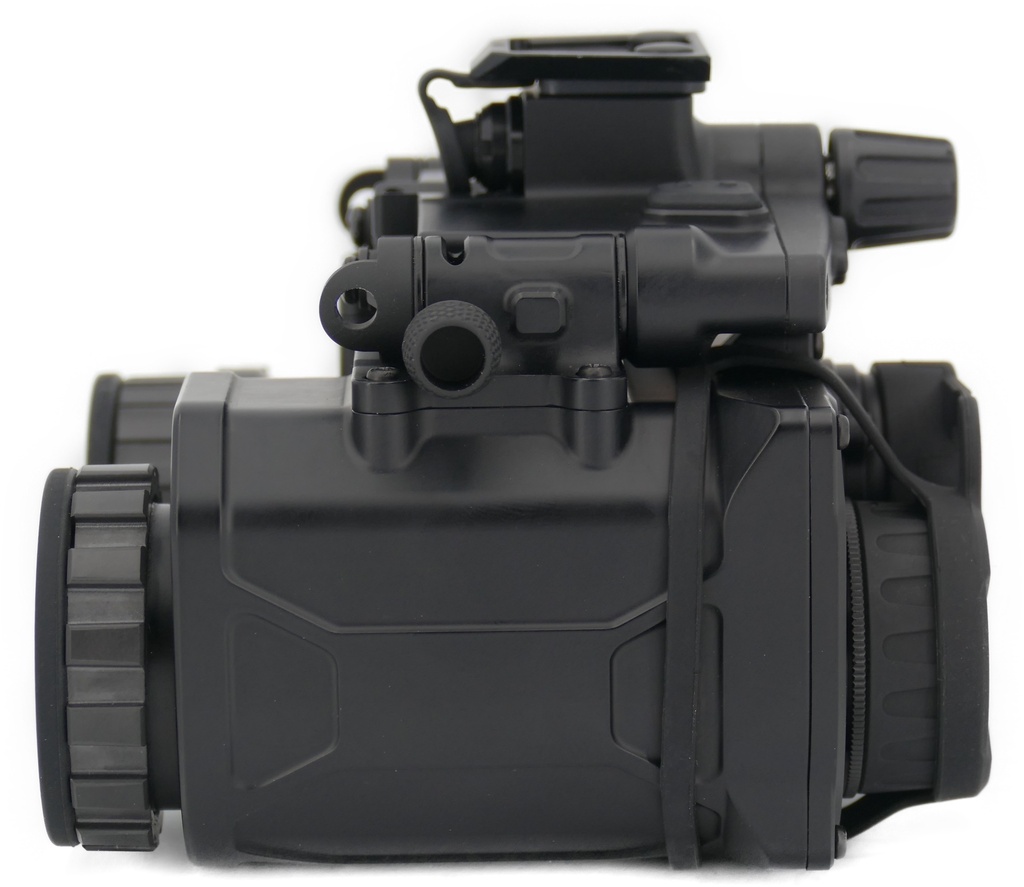

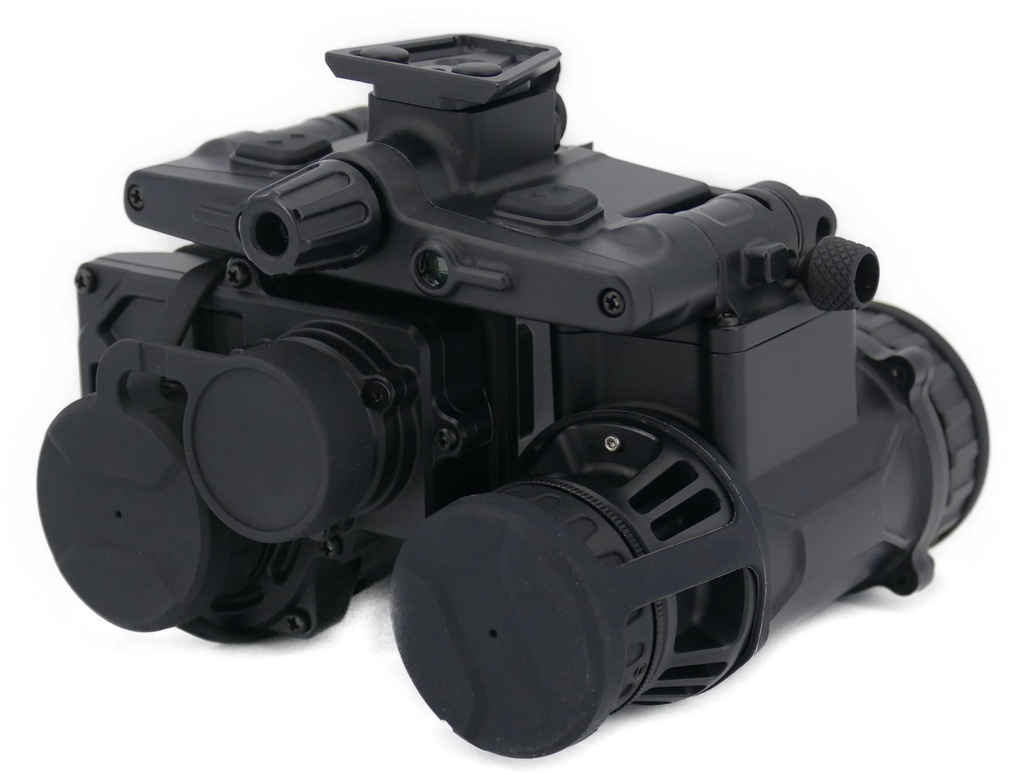

· Binocular Goggles Information
Dimensions:107×115×85mm
Weight: 525g (goggles)/320g (battery+cables)
Battery Life: 8H (infrared fusion), 100H (I2 only)
Power Supply Type: External battery
Bluetooth control:Support
Interface Type: L4G24
