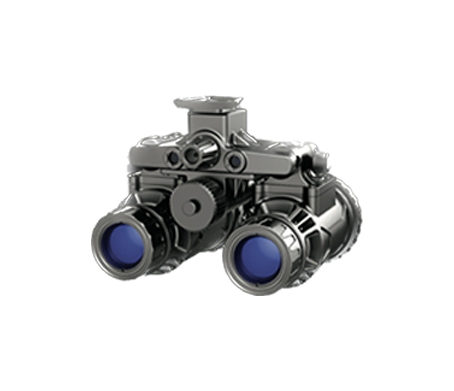

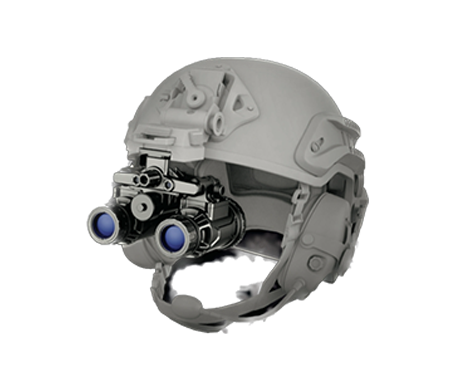

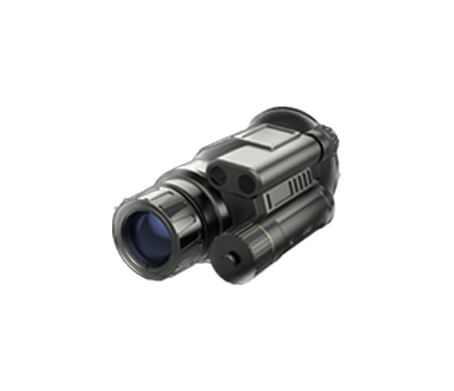

Jerry-14/31 monocular/binocular night vision goggle adopts super second-generation low light tubes. With reliable and superior performance, compact size, and ultra-light weight, it provides high-definition images to effectively improve situational awareness and self-protection capabilities.
| Model | Jerry-31 | Jerry-14 |
| Optical Specification | ||
| Focal Length of Objective Lens | f25mm | |
| F# | F1.2 | |
| Focal Length Range | 250mm~∞ | |
| Eyepiece Diopter | -0,5 | |
| Magnification | 1×(5%) | |
| FOV | 40°(±2%) | |
| Eye Relief Diameter | 15mm | |
| Eye Relief | 25mm | |
|
Performance Specifications
|
||
| Battery | AA | |
| Battery Life | 20h | 30h |
| Fill-in Light | 940IR | |
| High Light Protection | Supported | |
| Power-off by Upturning the Support | Supported | |
| Indicator Light | Supported | |
| Power-off by Side- Turning the Support | Supported | / |
| IPD Adjustment | 55-75mm | / |
|
Overall Unit Information
|
||
| Dimension | 100×89×112 | 128×68×69 |
| Weight | 470g | 270g |
| IP Grade | IP67 | |
| Interface | L4G24 | J ARM |
| Image Intensifier | ||
| Limiting resolution | 64 | |
| Signal to noise ratio | 21 | |
| Phosphor | P43(White photosphorus is optional) | |
